W2V180
Large sized model and suitable for the configuration of the production line. It provides reliability in production lines with excellent degree of vacuum and durability. Easy to use and maintain with a simple structure.

Pumping Speed

1800L/min

Ultimate Pressure

≤1X10-3 Torr

Motor Power

3.7kW(5hp)

Specifications

Pumping Speed1800ℓ/min
Ultimate PressureGas Ballast Open5X10 -2 Torr ( 6.7 Pa)
Gas Ballast Closed≤1X10 -3 Torr ( 1.3X10 -1 Pa )
Power InputStandardΦ3 220VAC/380VAC 50/60 Hz
Customer’s Request (Voltage, Frequency and phase)
Full load Power3.7kw (5 HP)
Motor Speed1,700 rpm
InletStandardNW40
Option INW25 or Hose (Φ36 OD)
Option IIUser Requested Type
Weight Φ3101.5kg
Oil Capacity6200cc (6.2 L)
Overall Dimension (mm)             264(W) X 777.5(L) X 442(H)

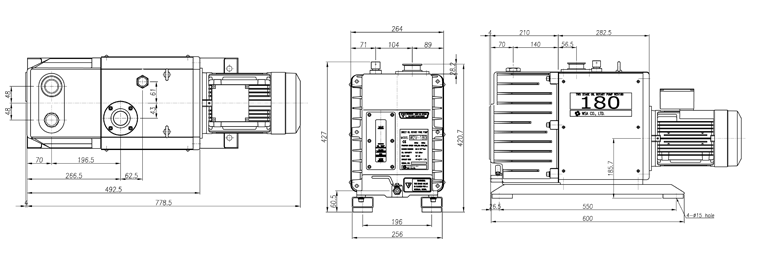

Dimensions

Pumping Curve

Accessories applicable

Inlet Outlet

Inlet Filter
  • WMT-400 -Filters
  • Details
Fittings
  • Clamp&Centering - NBR/NW40
  • Details
  • Hose Nipple -Φ36 for NW40
  • Details
  • PT Nipple -1&1/4″ for NW40
  • Details
  • Vacuum Hose - Φ38
  • Details
  • Bellows - NW40
  • Details
Outlet Filters
  • WOF-450(Metal) -Filters
  • Details
Fittings
  • Clamp&Centering -NBR/NW40
  • Details
  • Hose Nipple -Φ36 for NW40
  • Details
  • PT Nipple -1&1/4″ for NW40
  • Details
  • Vacuum Hose -Φ38
  • Details
  • Bellows -NW40
  • Details
